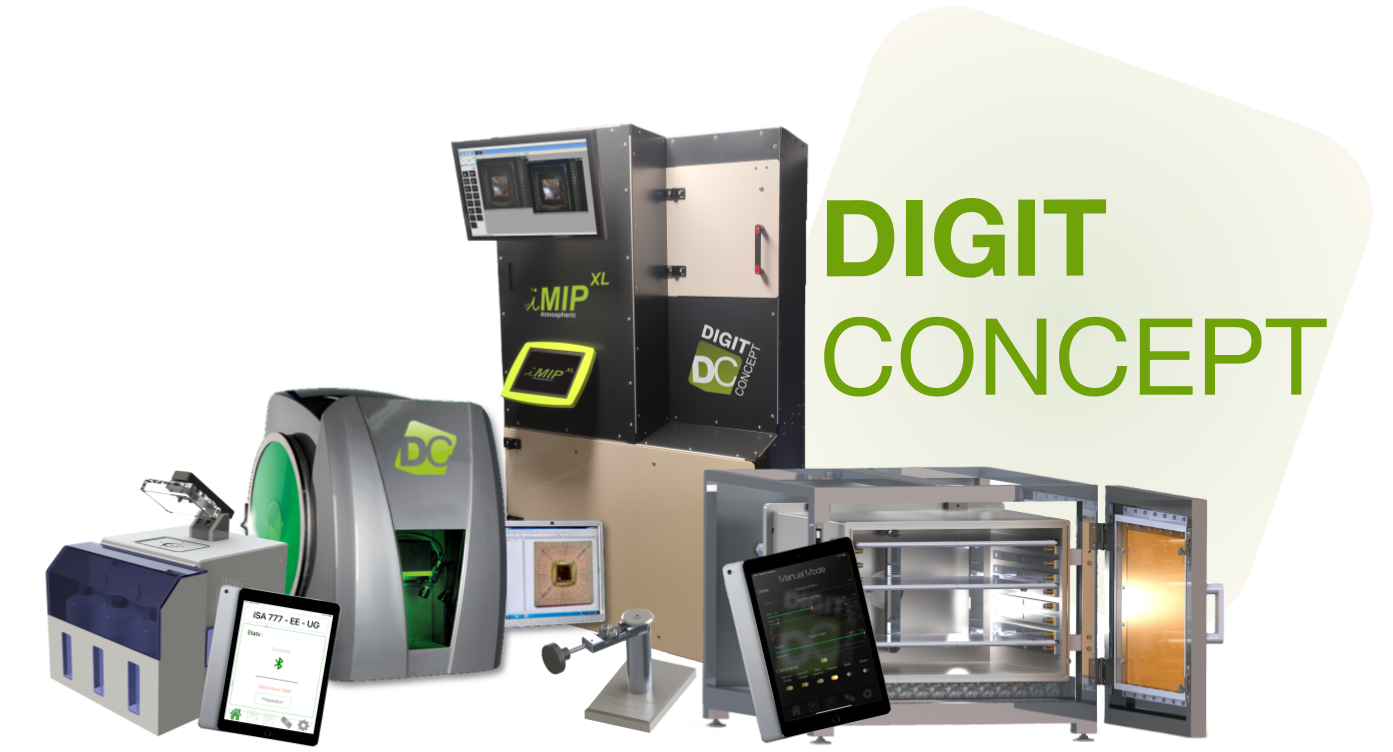

Our star equipments

A full range of solutions to cover all your advanced needs

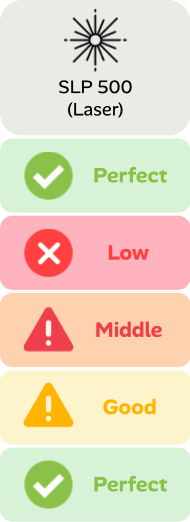

The laser system is primarily a pre-decapsulation solution used before plasma or acid opening. Pre-opening saves time, particularly in the case of plasma opening.
The laser is easy to install, very low-maintenance (takes up little space, can be moved easily, etc.), and requires minimal maintenance.
This method does not preserve the sample’s electrical characteristics if the laser strikes the chip. However, it does allow the wires to be exposed for mechanical testing or to create cross-sections.

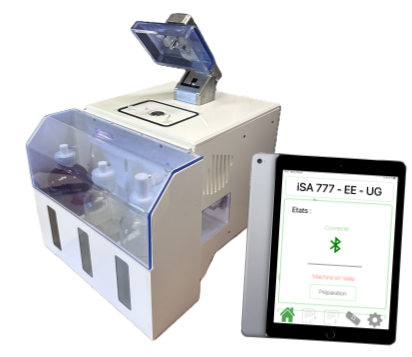

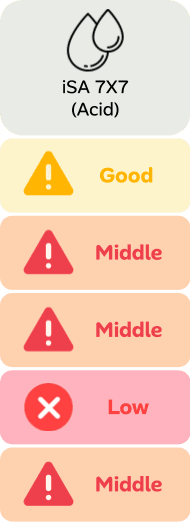

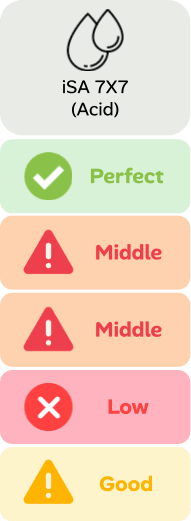

Acid iSA7x7

Acid opening is a rapid opening method (taking a few tens of minutes or even less) that preserves the electrical characteristics of the samples.
However, it requires appropriate infrastructure (an acid fume hood), training on chemical risks, and the use of recipes adapted to the samples to prevent any damage to the wires or the chip.
On the other hand, the machine enables automation and excellent repeatability for each opening. Finally, it minimizes the need to handle acids, thereby increasing user safety.

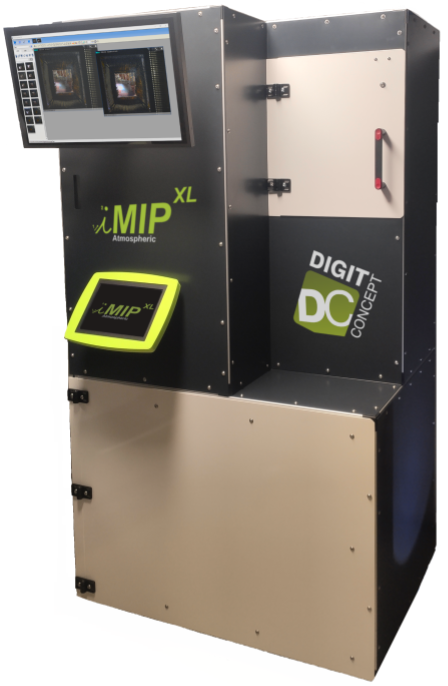

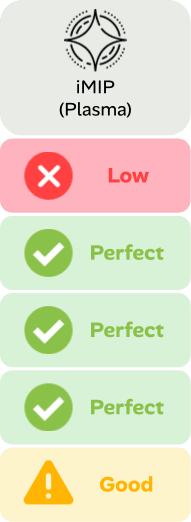

Plasma etching iMIP

Plasma etching is the safest and most reliable way to cleanly open a sample while preserving its mechanical and electrical properties. The drawback of this method is the etching time; it can take several hours, depending on the dimensions of the opening.
However, the plasma etching machine is fully automatic, so it is not necessary to remain near the machine for the entire duration of the process.
Since 2025, the plasma machine has been capable of decapsulating a sample directly on a PCB measuring up to 300 x 300 mm. In addition, the machine includes a batch-processing feature that allows multiple samples to be opened in sequence.

Why choose DIGIT-CONCEPT?

- For over 30 years, Digit-Concept has been supporting electronic component failure analysis laboratories with equipment, support, and services of exceptional quality.
- Constant innovation: Continuous development of advanced technologies.
- International support: 3 SESAME laboratories and 42 distributors worldwide.
